Pego Trapped Personnel Alarm System For Walk-In Coldrooms & Freezers

Pego ECP APE 03 Trap Man Alarm 230V

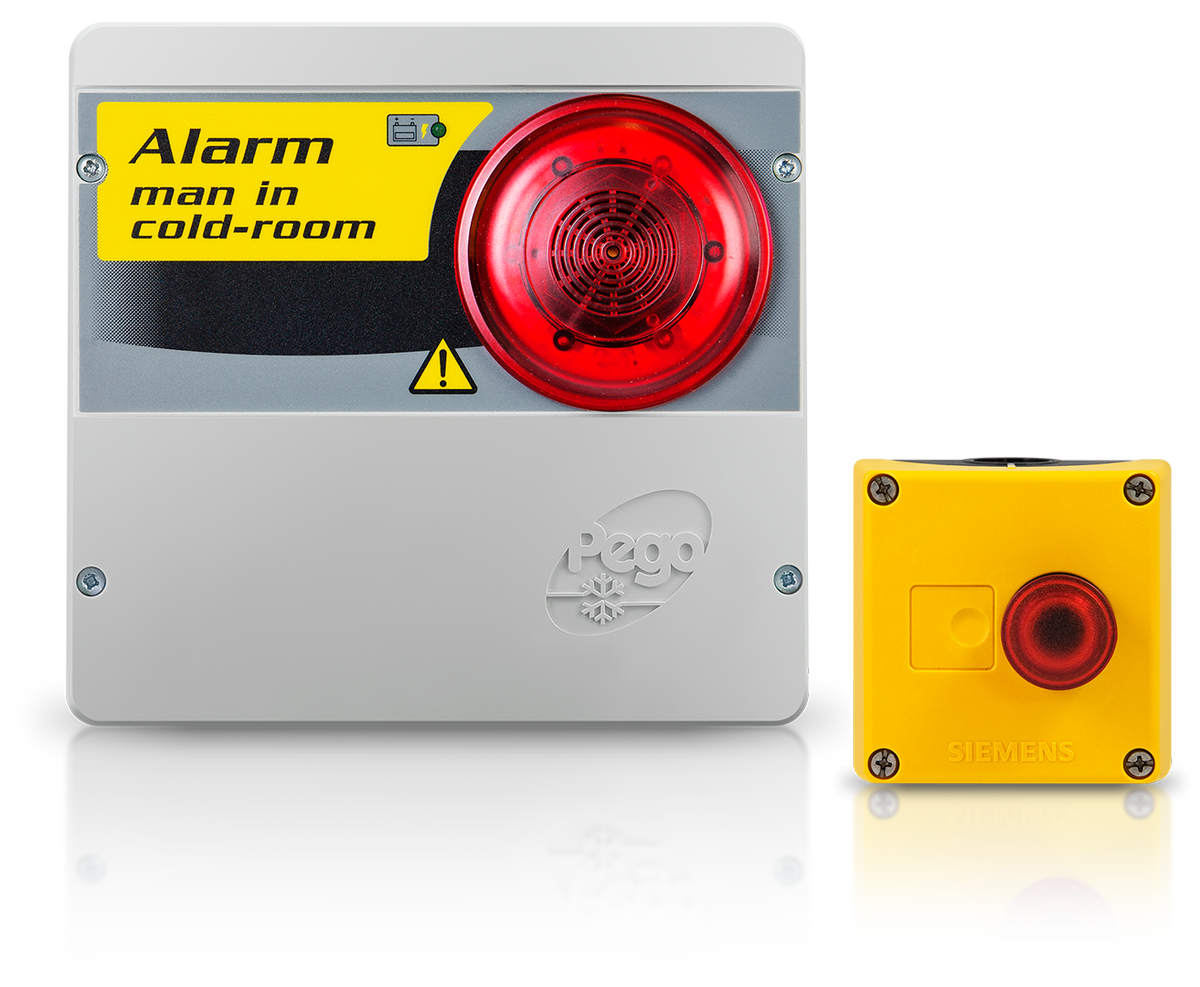

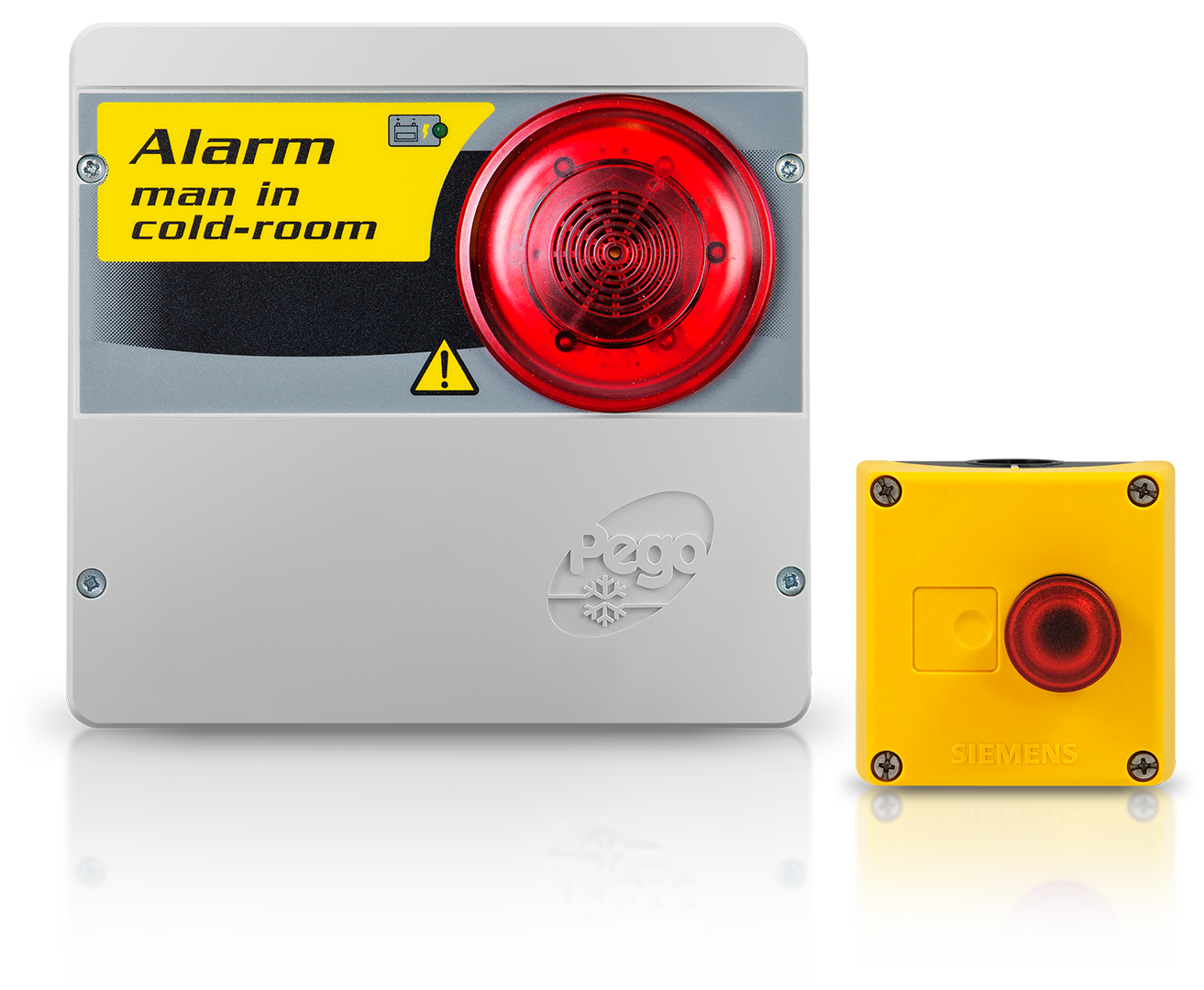

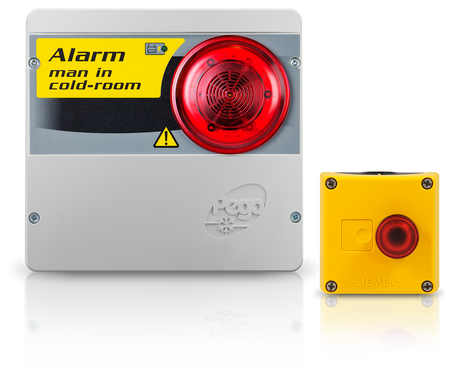

Man in cold room alarm kit: consisting of control unit with acoustic / visual warning, comes complete with buffer battery and luminous emergency in-room pushbutton.
The kit allows a person trapped inside the cold room to activate an acoustic-luminous alarm installed outside the room and so call for help. The system will work even in the event of a temporary power cut thanks to the buffer battery on the external unit.

• Complies to the UNI EN 378-1:2016, applicable to cold rooms at negative temperatures with a volume greater than 10 m3.
• Emergency pushbutton to be fitted inside cold room. This is a luminous mushroom-shaped pushbutton with a N.C. contact. The pushbutton is illuminated by LEDs, thus making it easy to find even in the dark.
• Acoustic-visual alarm control unit to be fitted outside the room. Features a siren and a flashing light and a buffer battery to provide power in the event of a black-out. Also has a clean contact (SPDT) that can be used to inhibit refrigeration, switch on the interior room light or activate other devices such as a dialer for remote alarm activation.
